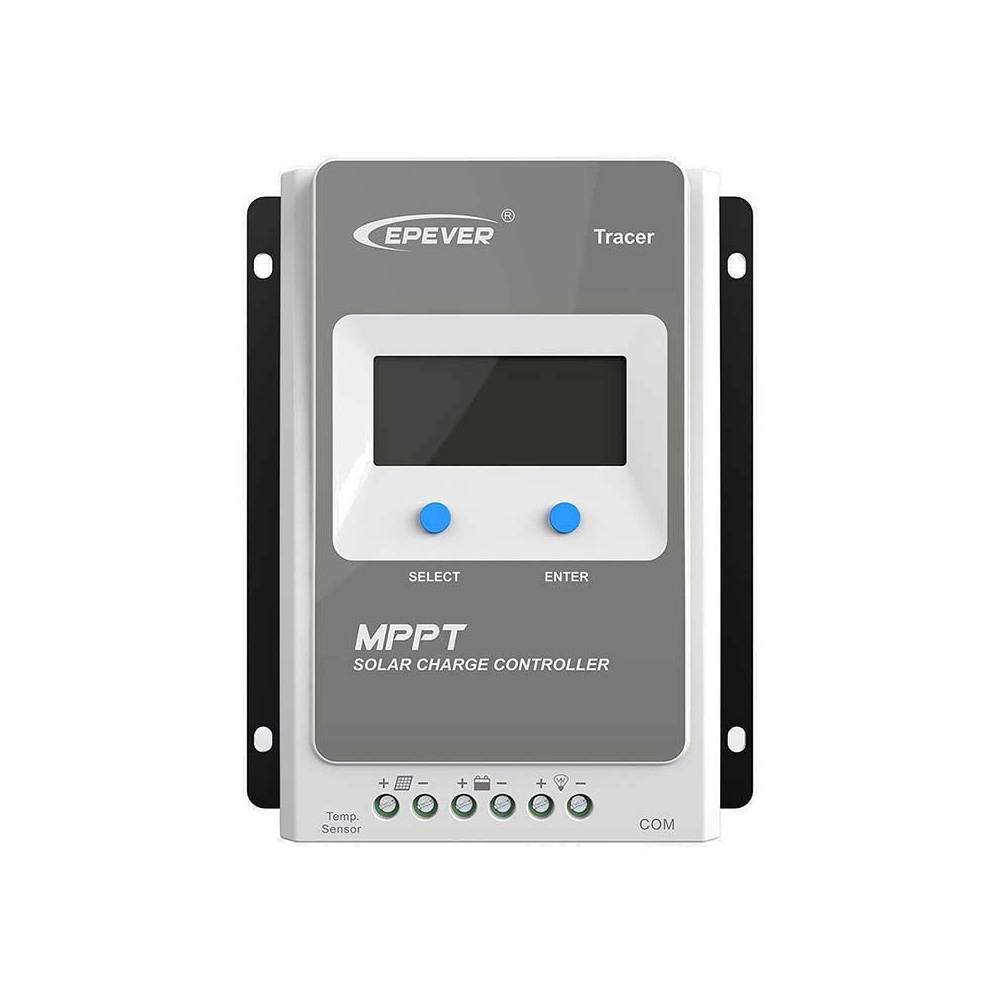

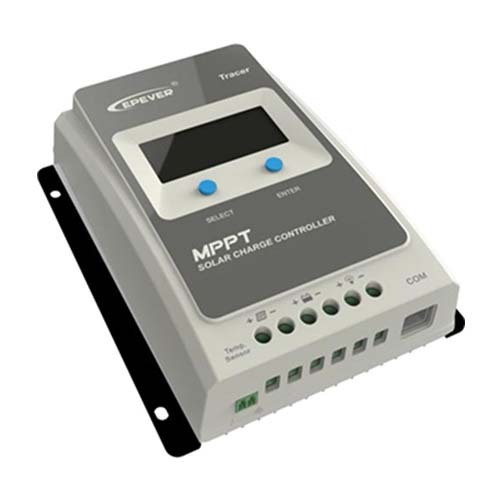

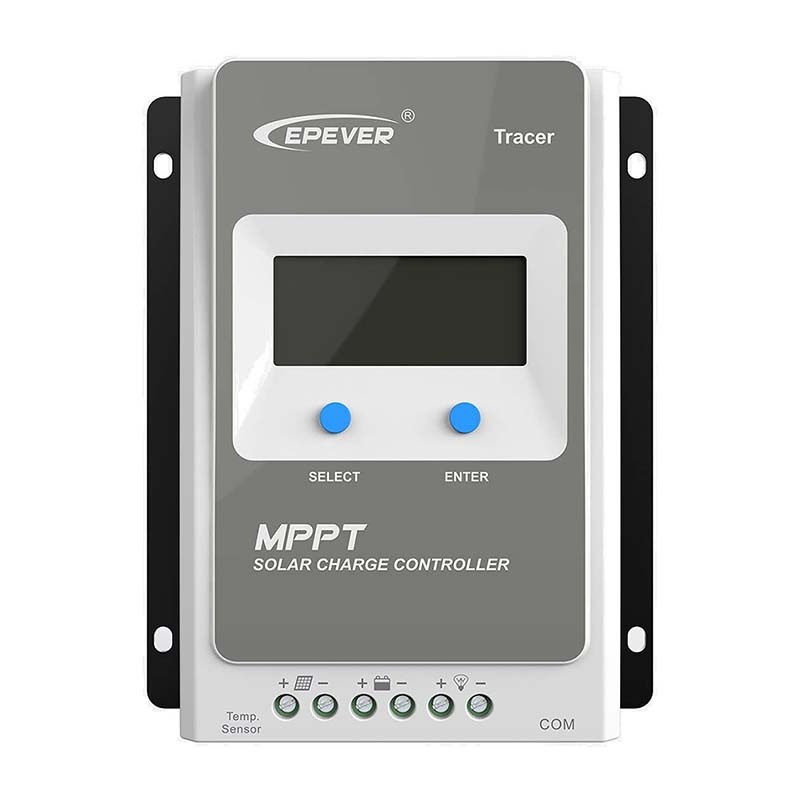

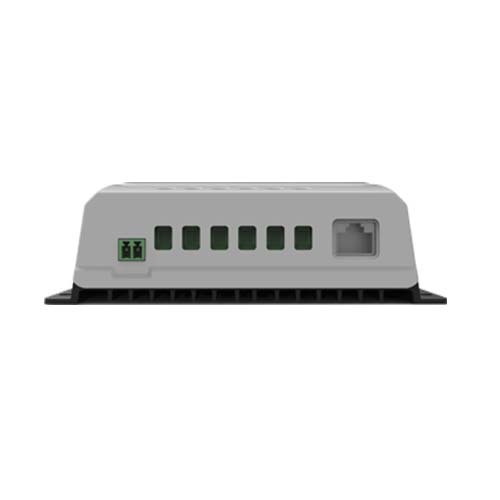

Epever Tracer-AN Series 3210 MPPT Solar Controller 12/24V 30A
PRICE
$ 258.00 NZD
or 4 payments of $64.50 with
Info
Benefits & Features
-
Advanced MPPT technology with 99.5% efficiency
-
Ultra-fast tracking speed and guaranteed tracking efficiency
-
Conversion efficiency up to 98%
-
LCD display
-
3-stage charging
-
Recognition and tracking of multiple-peaks maximum power point
-
Compatible with lead-acid and lithium-ion batteries
-
Functions: Charging power, current limitation, battery temperature compensation, real-time data, overheating power reduction
-
Multiple load work modes
-
Communication port with professional protection chip
-
Wireless monitoring via app or PV software
-
Full-load operation without drop in capacity
-
Extensive electronic protection
-
Voltage: 12V/24V DC
-
Rated Charge and Discharged Current: 30A
-
Weight: 1.26kg
-
Dimensions: 228mm x 164mm x 55mm
Click here for the Manual
Specifications
-
Rated Charge Power: 390W/12V 780W/24V
-
Max. PV Open Power Circuit Voltage: 92V (at 25°C environment temp), 100V (at minimum operating temp)
-
Battery Voltage Range: 8 - 32V
-
Common negative grounding
-
RS485 Interface: 5V DC/100mA
-
Enclosure: IP32
-
Working Environment Temperature: -25°C - +50°C
-
Relative Humidity: ≤ 95%, N.C
The Epever Tracer-AN Series 3210 Solar Controller is a smart addition to solar power systems with lead-acid or lithium-ion batteries. Featuring an adaptive three-stage charging algorithm, the controller can extend the life-cycle of batteries.
Designed with advanced MPPT technology, the controller tracks the maximum power point and acquires the maximum solar energy to improve solar efficiency.
The unit is ideal for use on various applications, including RVs and household systems.
| Barcode # | 202202027 |
| Brand | Epever |
| Unit Of Measure | ea |
| SKU | 202202027 |
