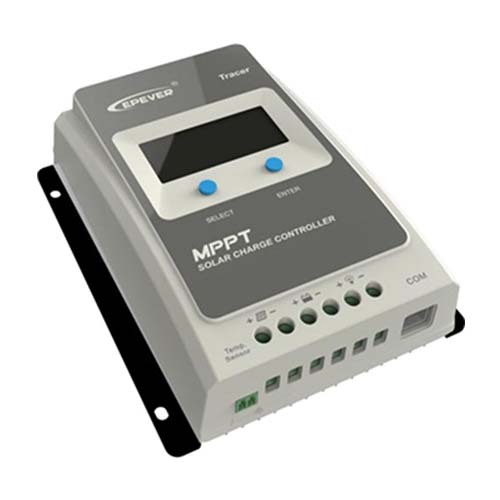

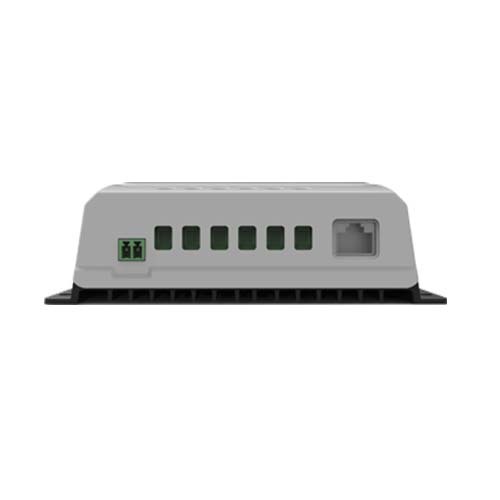

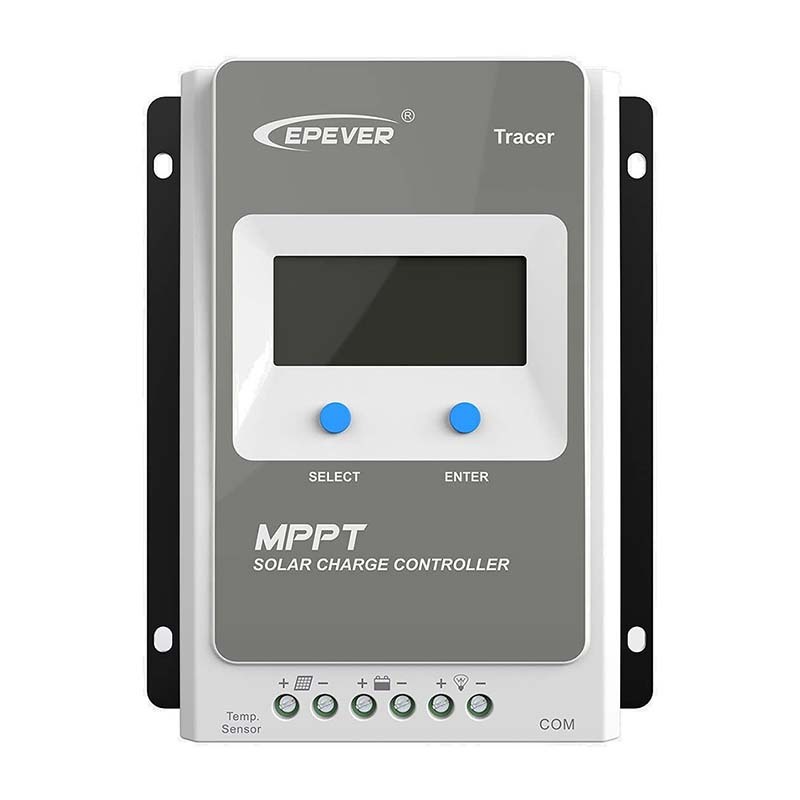

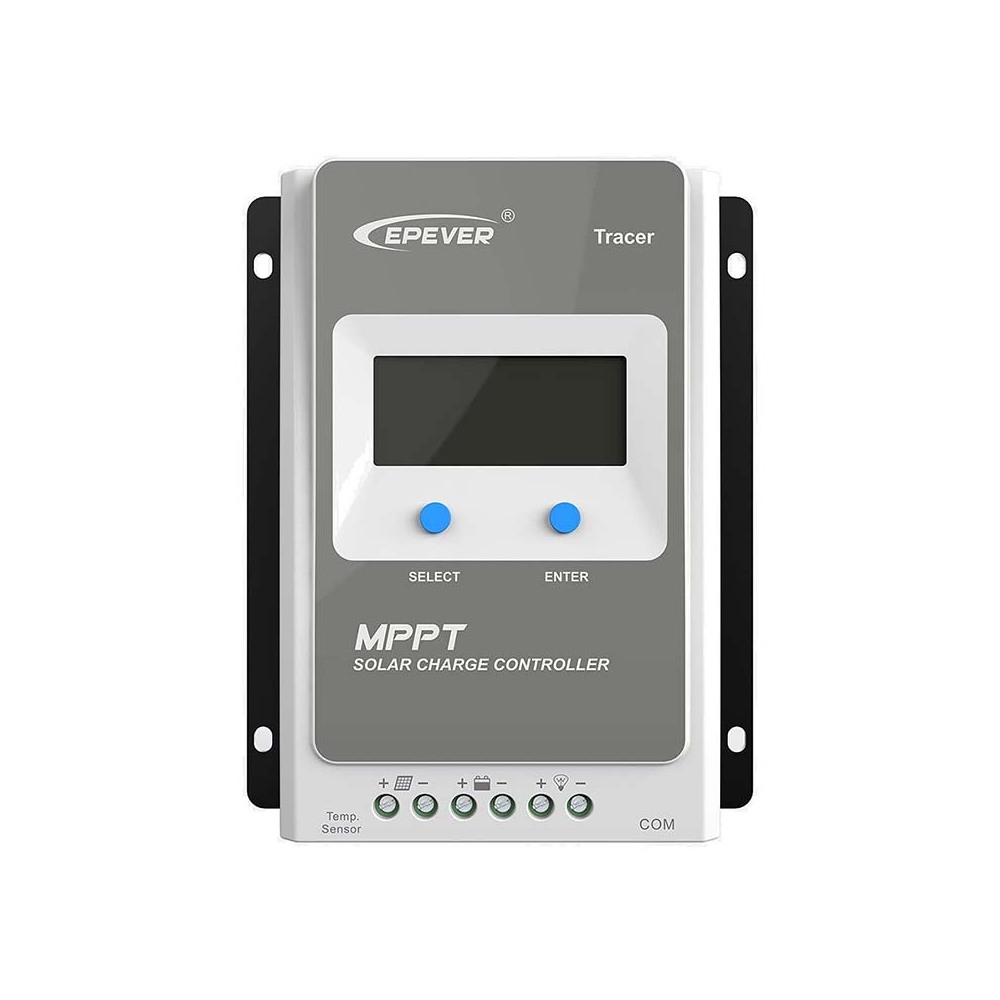

Epever Tracer-AN Series 2210 MPPT Solar Controller 12/24V 20A

Benefits & Features

• Advanced MPPT technology with 99.5% efficiency

• Ultra-fast tracking speed and guaranteed tracking efficiency

• Conversion efficiency up to 98%

• LCD display

• 3-stage charging

• Recognition and tracking of multiple-peaks maximum power point

• Compatible with lead-acid and lithium-ion batteries

• Functions: Charging power, current limitation, battery temperature compensation, real-time data, overheating power reduction

• Multiple load work modes

• Communication port with professional protection chip

• Wireless monitoring via app or PV software

• Full-load operation without drop in capacity

• Extensive electronic protection

• Weight: 0.94kg

• Dimensions: 220mm x 154mm x 52mm

• Voltage: 12V/24V DC

• Rated Charge and Discharged Current: 20A

Click here for the Manual

Specifications

• Rated Charge Power: 260W/12V   520W/24V

• Max. PV Open Power Circuit Voltage: 92V (at 25°C environment temp), 100V (at minimum operating temp)

• Battery Voltage Range: 8 - 32V

• Common negative grounding

• RS485 Interface: 5V DC/100mA

• Enclosure:  IP32

• Working Environment Temperature: -25°C - +50°C

• Relative Humidity:  ≤ 95%, N.C
