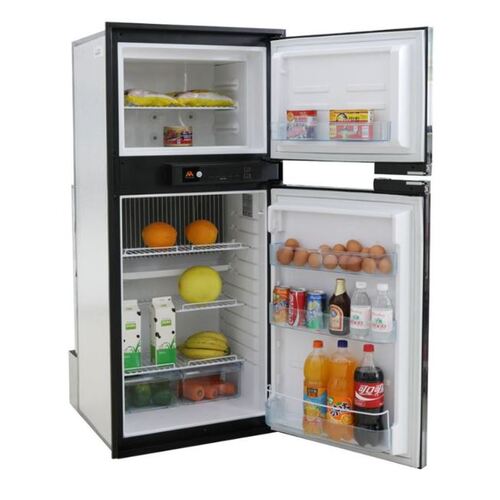

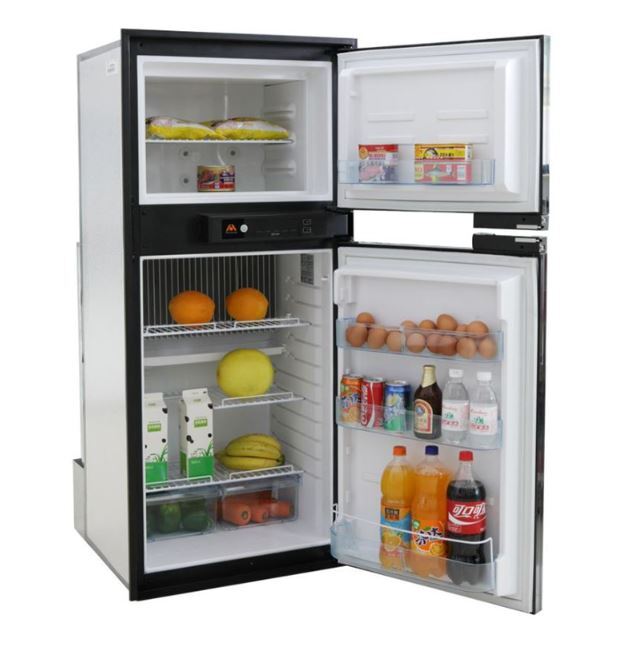

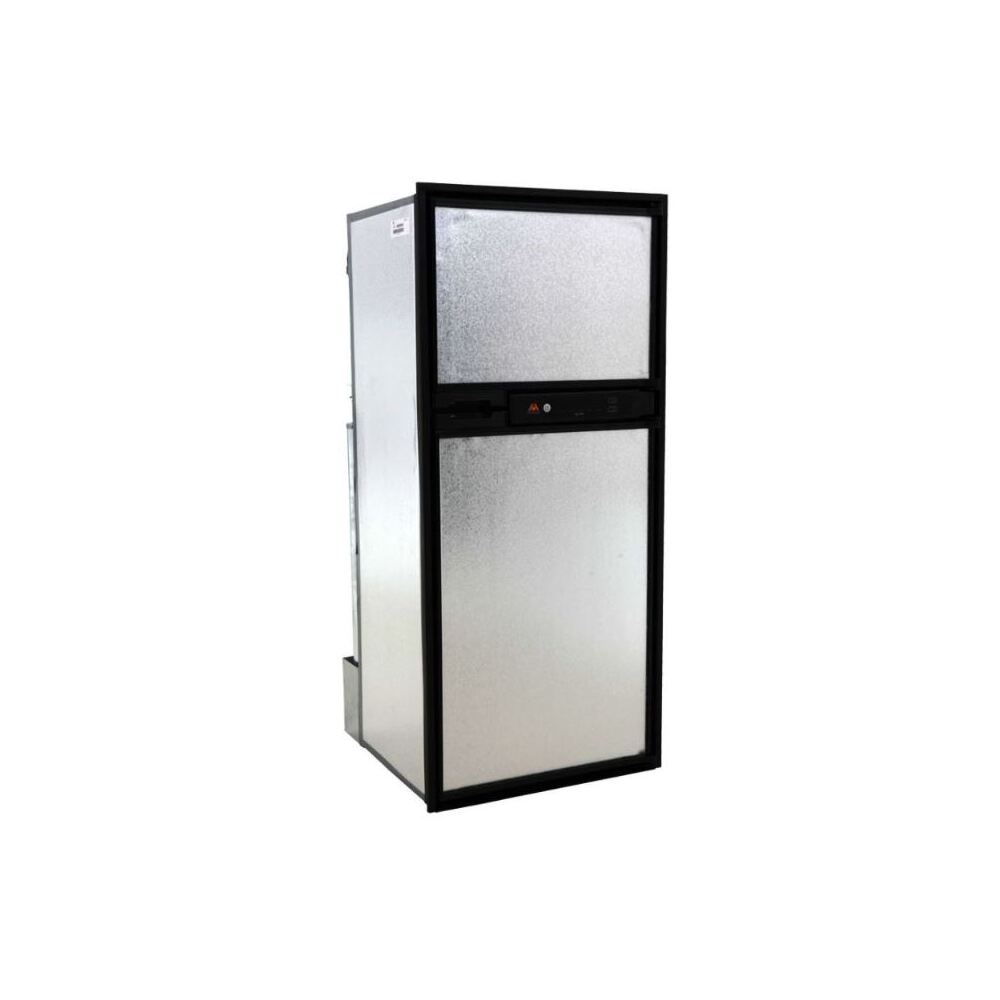

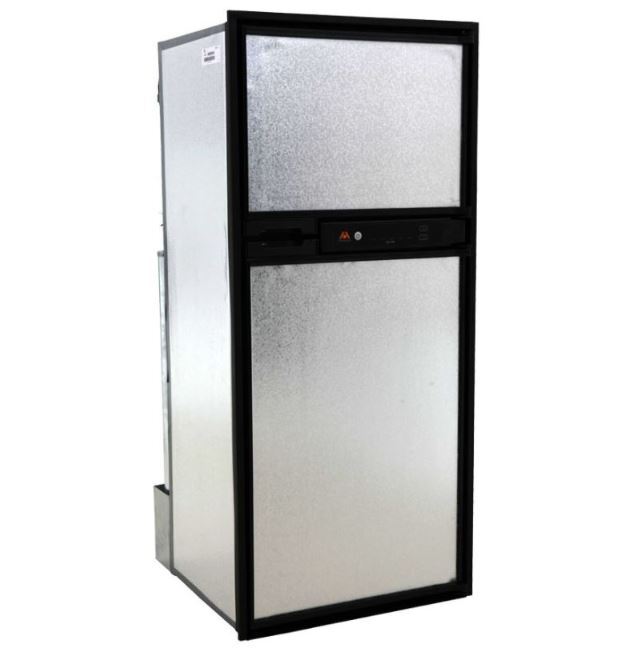

Challenger Built-In Fridge/Freezer 240V/Gas - 185L

Benefits & Features*

• 2-way: LPG, 240V

• Automatic energy selection and gas ignition

• Quick-lock mechanism on door to secure closed while driving

• Door will accept a 4mm insert to suit customer interior

• LPG flame failure safety device and electronic thermostat

• LED internal light in refrigerator

• Bars in front of shelves to prevent items from falling out

• Requires venting – recommended a top and bottom vent

• Requires 12V for the electronic touchpad

• Sliding divider on each door pocket

• Mounting flange

• Gross Capacity: 185L

• Overall Dimensions: 612mm(w) x 1355mm(h) x 640mm(d)

• Cut-out Dimensions: 590mm(w) x 1340mm(h) x 620mm(d)

• Weight: 58.5kg

• Warranty: 12 months

**Please Note: All technical specifications are subject to changes. Errors and omissions are expected.

NOTE: The installation and service must be done by a certified gas fitter please refer to the instruction manual.

Specifications

• Freezer Capacity: 48L

• Maximum Gas Consumption: 560g/24h

• Rated Power: 240V AC

• Input Power: 300W AC / 50Hz

• Fridge Temperature: 0°C - 10°C

• Freezer Temerature: -15°C

• On auto mode, it changes to 240V whenever available and back to Gas when no power available. Energy source can also be chosen manually. The control panel needs a continous 12V power supply, draws 0.07A when on 240V and 0.37A when running on gas. Automatic cooling fan activates if required, draws additional 0.23A.
